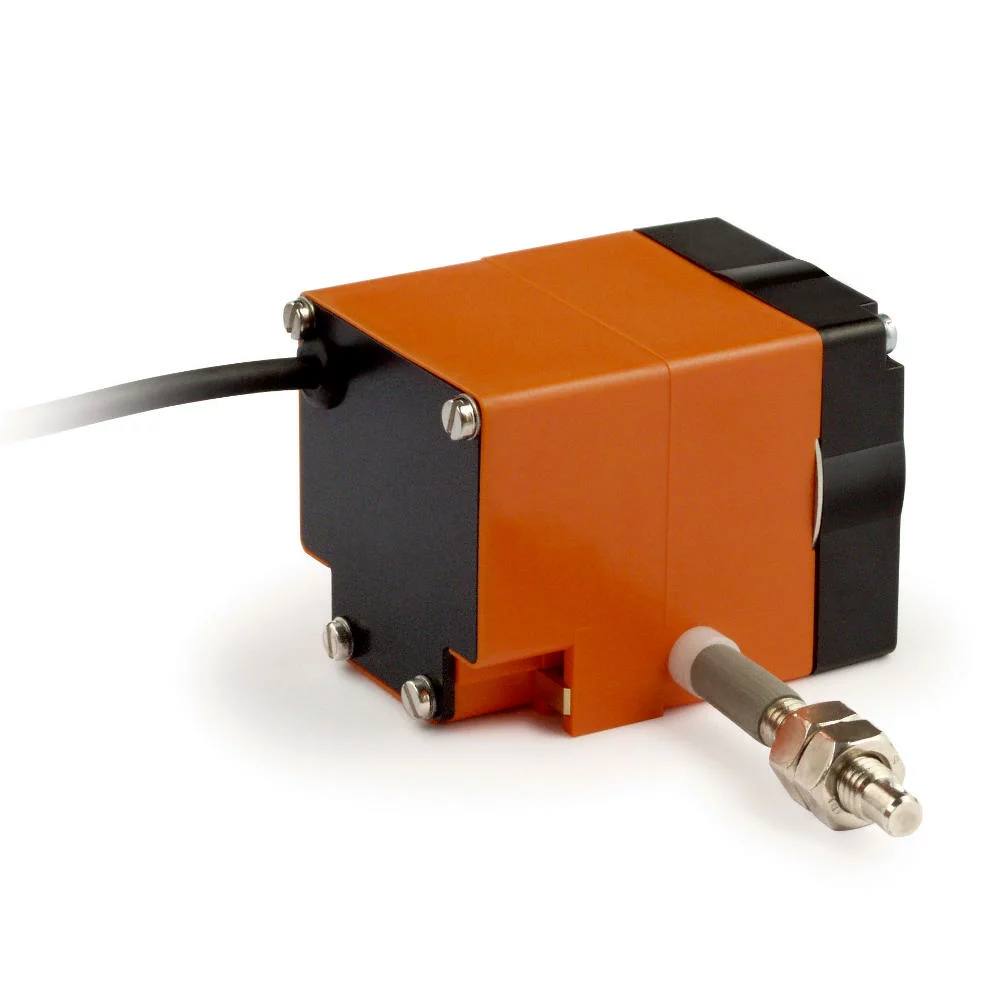

Maksimum 2000 mm ölçüm uzunluğuna sahip ölçüm mesafelerini algılamak için kullanılan minyatür tel çekmeli enkoder.
| Feature | Technical data | Additional information |
| Wire design | ø0.45 mm | rustproof stainless steel, plastic-coated |
| ø0.45 mm | rustproof stainless steel | |
| Extension force | ≥2 N | |
| Measured distance/ rope drum revolution | 100 mm | |
| Cable length | ≤30 m | P10 + MWI encoder type |
| ≤20 m | MWU encoder type | |
| Weight | ~0.2 kg | |
| Housing | reinforced plastic |
| Encoder potentiometer | ||
| Feature | Technical data | Additional information |
| Power rating | 1.5 W at 70 °C | |
| Resistance | 10 kΩ | |
| Resistance tolerance | ±5 % | |
| Linearity tolerance | ±0.25 % | |
| ±0.1 % | MWI/0,1 encoder type | |
| Transducer, power output | ||
| Feature | Technical data | Additional information |
| Operating voltage | 24 V DC ±20 % at load 500 Ω | |
| Output current | 4 … 20 mA | |
| Transducer, voltage output | ||
| Feature | Technical data | Additional information |
| Operating voltage | 15 … 28 V DC at 36 mA without load | |
| Output voltage | 0 … 10 V DC | |
| Load | ≤15 mA |
| Feature | Technical data | Additional information |
| Repeat accuracy | ±0.15 mm | |
| Travel speed | ≤800 mm/s |
| Feature | Technical data | Additional information |
| Ambient temperature | -10 … 80 °C | without transducer |
| 0 … 50 °C | with transducer | |
| Protection category | IP50 (encoder part potentiometer) | EN 60529 |
| IP54 (incremental) | EN 60529 |
