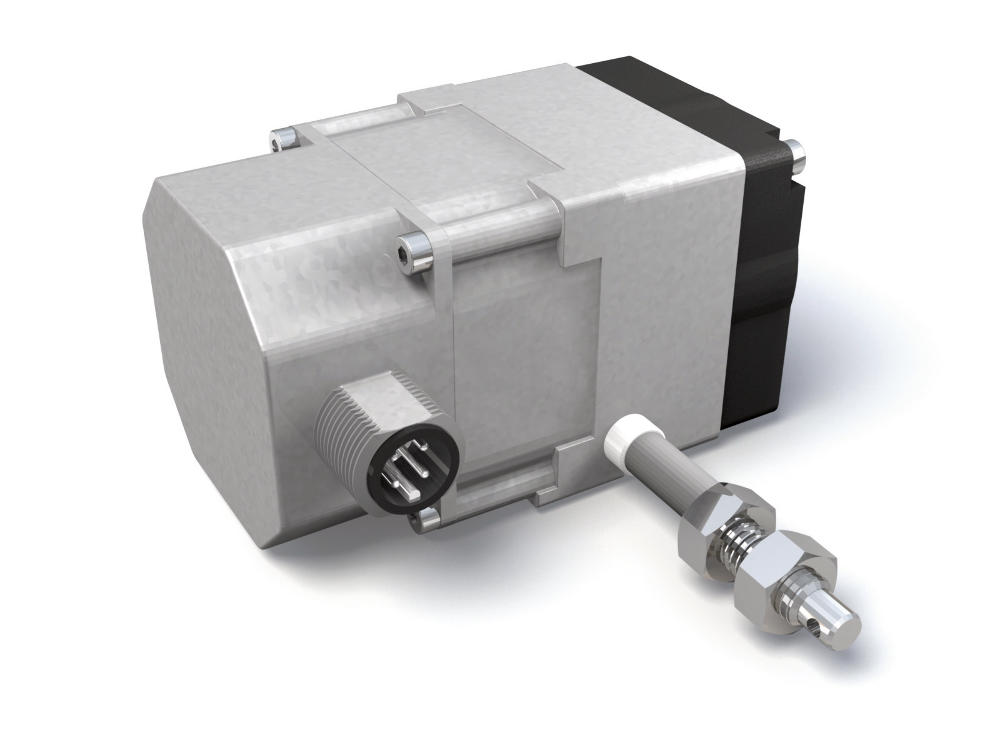

Maksimum 2000 mm ölçüm uzunluğuna ve analog çıkışa sahip kompakt tel çekmeli enkoder.
| Feature | Technical data | Additional information |
| Wire design | ø0.45 mm | rustproof stainless steel, plastic-coated |
| ø0.45 mm | rustproof stainless steel | |
| Extension force | ≥2 N | T1 operating temperature |
| ≥11 N | T2 operating temperature | |
| Measured distance/ rope drum revolution | 100 mm | |
| Absolute accuracy | ±0.35 % | relating to measuring length (mm) |
| Cable length | ≤20 m | E1 connection type |
| Weight | ~0.32 kg | |
| Housing | zinc die-cast |
| Encoder potentiometer | ||
| Feature | Technical data | Additional information |
| Power rating | 2 W at 70 °C | |
| Resistance | 10 kΩ | |
| Resistance tolerance | ±5 % | |
| Linearity tolerance | ±0.25 % | |
| Transducer, power output | ||
| Feature | Technical data | Additional information |
| Operating voltage | 10 … 30 V DC | between I+ and I-, at ≤500 Ω load |
| Output current | 4 … 20 mA | (4/20mA, MWIHP) |
| Transducer, voltage output | ||
| Feature | Technical data | Additional information |
| Operating voltage | 15 … 28 V DC at 3 mA without load (0/10V) | |
| 8 … 28 V DC at 3 mA without load (0.5/4.5V) | ||
| Output voltage | 0 … 10 V DC | ILoad ≤10 mA (0/10 V) |
| 0.5 … 4.5 V DC | ILoad ≤10 mA (0.5/4.5 V) | |
| Resistance | 2 … 10 kΩ | against GND |
| Load | ≤15 mA | |
| Feature | Technical data | Additional information |
| Repeat accuracy | ±0.15 mm | |
| Travel speed | ≤1 m/s |
| Feature | Technical data | Additional information |
| Ambient temperature | -10 … 80 °C | T1 |
| -40 … 80 °C | T2 | |
| Protection category | IP65 (encoder part) | EN 60529 |
