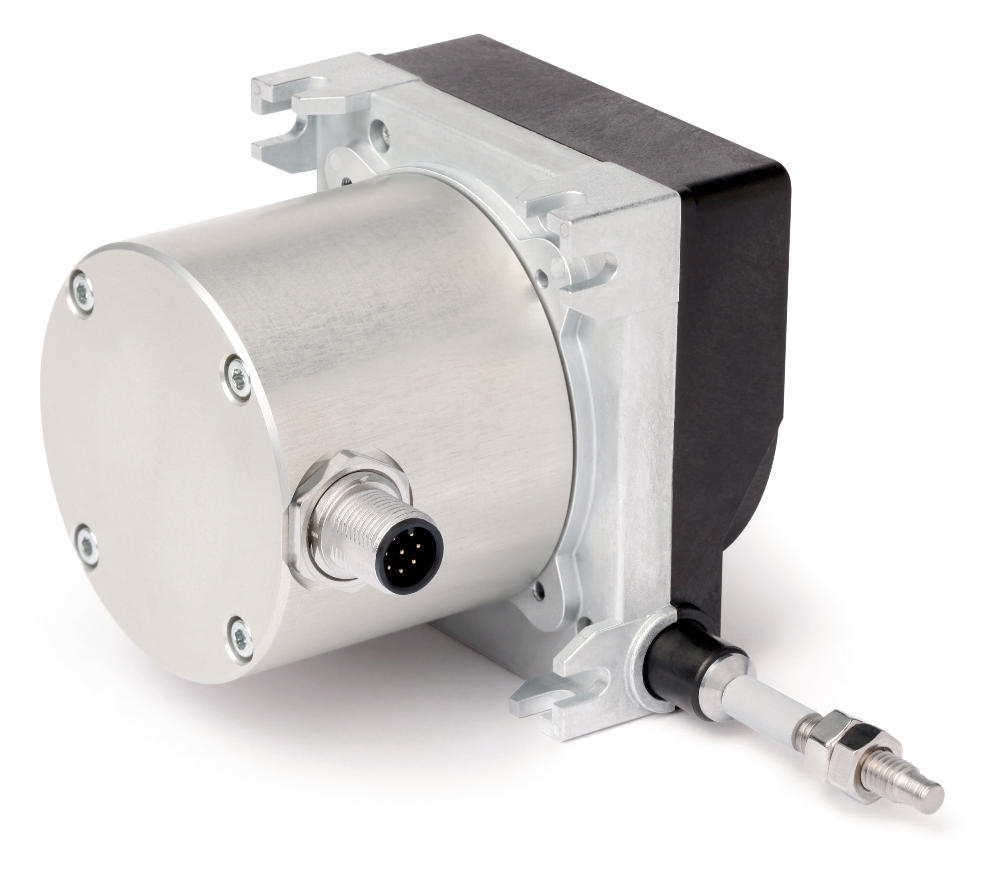

Çekme telli enkoder SG32
Vinç imalatı, sahne sistemleri, depolama teknolojisi vb. birçok uygulama alanı için kompakt tasarıma sahip, 3000 mm’ye kadar ölçüm uzunluğu sunan ve yedekli tasarımda sinyal çıkışına sahip çok sağlam tel çekmeli enkoder. Kolay ve evrensel olarak değiştirilebilir montaj.
| Feature | Technical data | Additional information |
| Wire design | ø0.61 mm | rustproof stainless steel, plastic-coated |
| ø0.6 mm | rustproof stainless steel | |
| Extension force | ≥9 N | |
| Absolute accuracy | ±0.35 % | relating to measuring ranges (mm) |
| Weight | ~0.5 kg | |
| Housing | zinc die-cast, plastic |
| Encoder potentiometer | ||
| Feature | Technical data | Additional information |
| Type of connection | M12 plug connector (A-coded) | 8-pole, 1x pin |
| Operating voltage | ≤30 V DC | power loss on the potentiometer <1 W |
| Power rating | 2 W at 70 °C | |
| resistance | 10 kΩ | |
| Resistance tolerance | ±5 % | |
| Standard terminal resistance | 0.5 % or 1 Ω | the higher value always applies |
| Linearity tolerance | ±0.25 % | |
| Transducer, power output | ||
| Feature | Technical data | Additional information |
| Operating voltage | 10 … 30 V DC | between I+ and I-, at ≤500 Ω load |
| Output current | 4 … 20 mA (2x) | 4/20mA 4/20mA |
| 20 … 4 mA (2x) | 20/4mA 20/4mA | |
| 4 … 20 mA, 20 … 4 mA | 4/20mA 20/4mA | |
| Type of connection | M12 plug connector (A-coded) | 8-pole, 1x pin |
| Repeat accuracy | ±0.15 mm | per direction of approach |
| Travel speed | ≤800 mm/s | |
| Failure rate | 166.7 Year(s) | at 60 °C (MTBF) |
| Ambient temperature | -40 … 80 °C | |
| Protection category | IP65 (for electronic unit) | EN 60529, certonally coated electronics |
