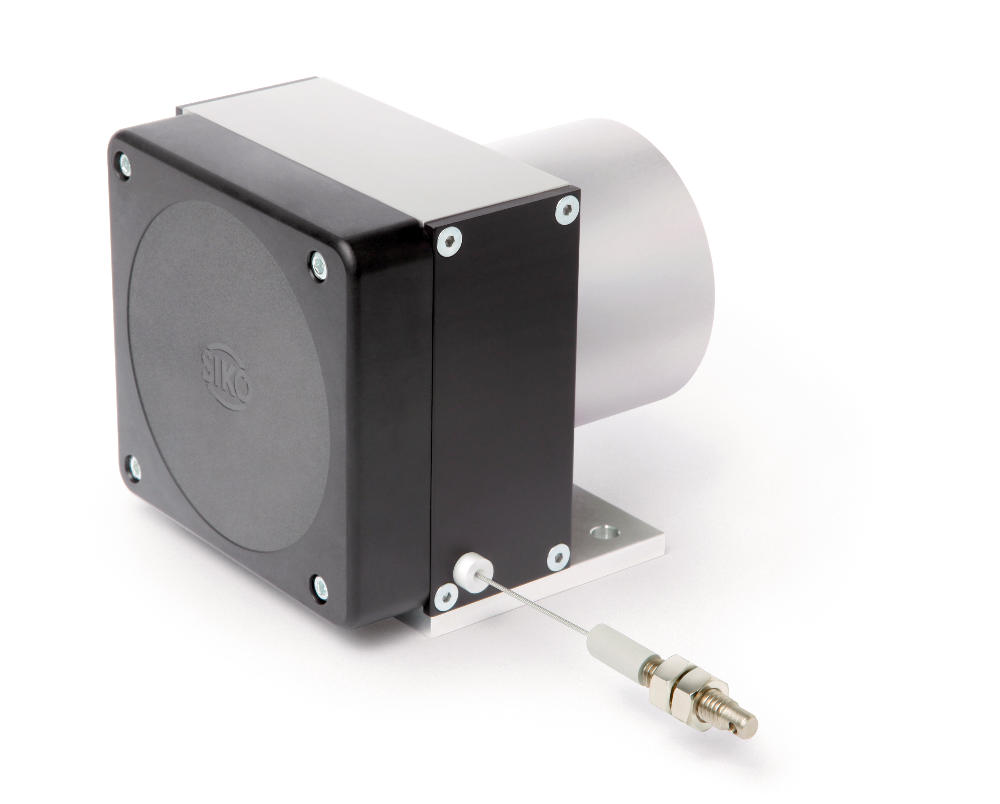

Maksimum 4000 mm ölçüm uzunluğuna sahip, lineer ölçüm mesafelerinin yedekli olarak algılanmasını sağlayan tel çekmeli enkoder.
| Feature | Technical data | Additional information |
| Wire design | ø0.87 mm | rustproof stainless steel, plastic-coated |
| Extension force | ≥8 N | |
| Absolute accuracy | ±0.35 % | relating to measuring length (mm) |
| Weight | ~0.79 kg | |
| Measured distance/ rope drum revolution | 200 mm | |
| Housing | aluminum/plastic |
| Encoder potentiometer | ||
| Feature | Technical data | Additional information |
| Type of connection | M12 plug connector (A-coded) | 8-pole, 1x pin |
| Operating voltage | ≤30 V DC | power loss on the potentiometer <1 W |
| Power rating | 2 W at 70 °C | |
| resistance | 10 kΩ | |
| 5 kΩ | ||
| Resistance tolerance | ±5 % | |
| Linearity tolerance | ±0.25 % | |
| Standard terminal resistance | 0.5 % or 1 Ω | the higher value always applies |
| Transducer, power output | ||
| Feature | Technical data | Additional information |
| Operating voltage | 10 … 30 V DC | between I+ and I-, at ≤500 Ω load |
| Type of connection | M12 plug connector (A-coded) | 8-pole, 1x pin |
| Output current | 4 … 20 mA (2x) | 4/20mA 4/20mA |
| 20 … 4 mA (2x) | 20/4mA 20/4mA | |
| 4 … 20 mA, 20 … 4 mA | 4/20mA 20/4mA | |
| Repeat accuracy | ±0.25 mm | per direction of approach |
| Travel speed | ≤800 mm/s | |
| Failure rate | 166.7 Year(s) | at 60 °C (MTBF) |
| Ambient temperature | -40 … 80 °C | |
| Protection category | IP65 (for electronic unit) | EN 60529, certonally coated electronics |
