Mechanical Data
| Feature | Technical data | Additional information |
| Housing | plastic | PA66 |
| Wire design | ø0.45 mm | rustproof stainless steel |
| Extension force | ≥2 N | |
| Acceleration | ≤10 m/s² | |
| Weight | ~0.15 kg | |
| Flange | aluminum | sealing ring (HNBR) |

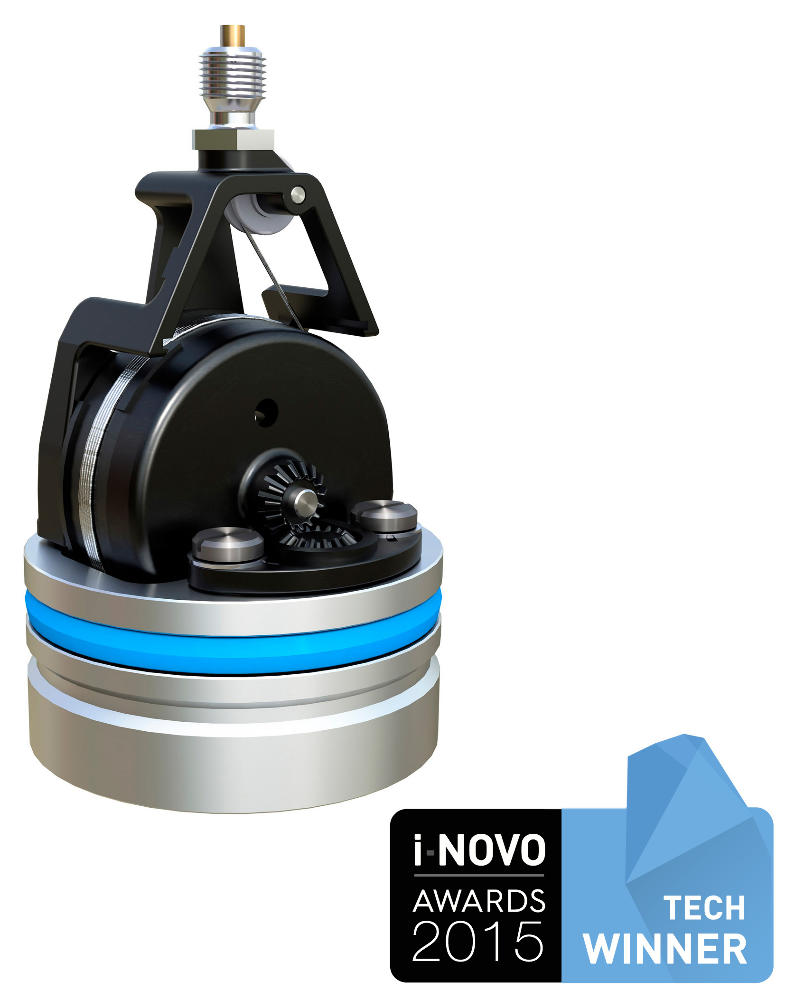

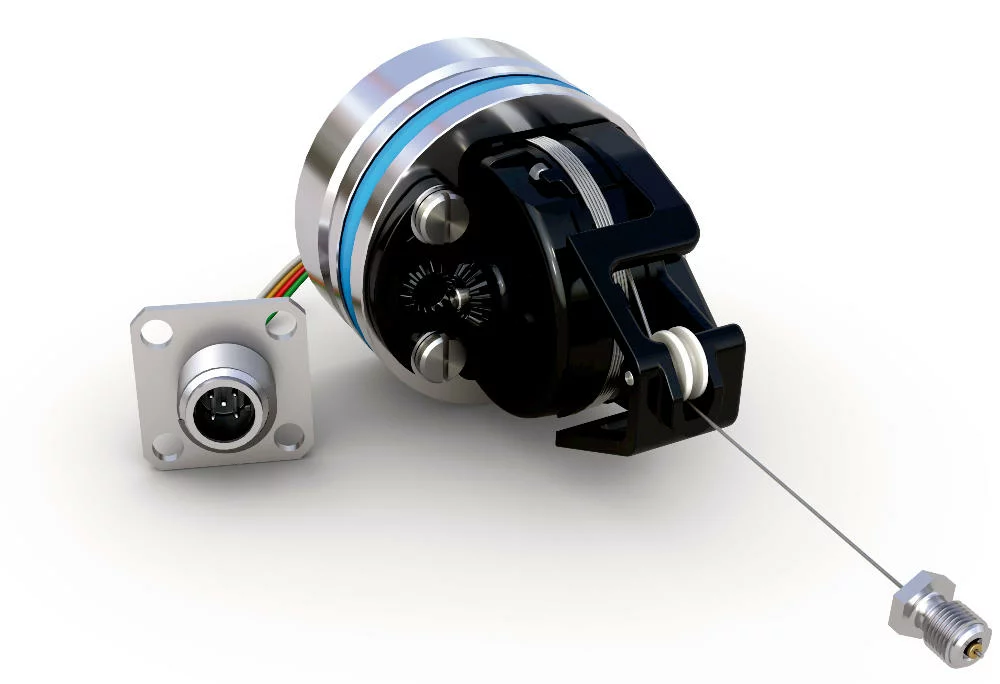

SIKO Çekme telli enkoder SGH10

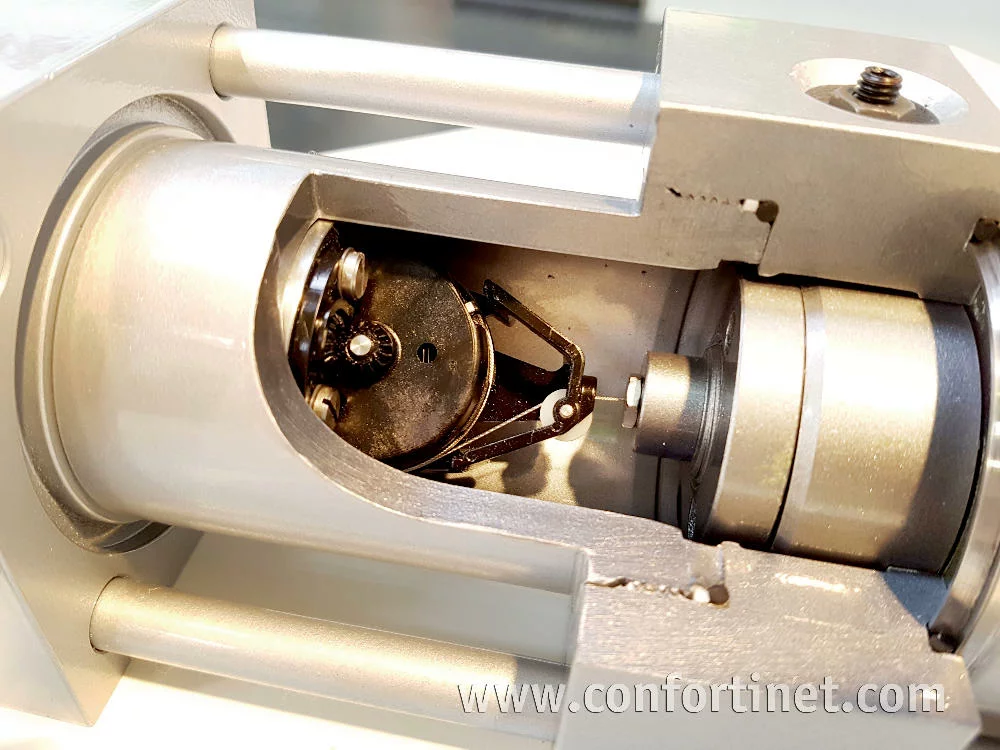

SGH tel çekmeli enkoder, hidrolik silindir içerisindeki mutlak ve doğrudan silindir strokunu ölçer. Yeni ölçüm sistemi sayesinde pistonun maliyetli şekilde delinmesine artık gerek kalmaz. Bunun sonucunda diğer ölçüm sistemlerine kıyasla daha düşük entegrasyon maliyetleri sağlanır ve pistonun zayıflaması etkin şekilde önlenir. Öne çıkan özellik: Ölçüm sistemi teleskopik silindirlerde bile kullanılabilir! SPS IPC Drives 2015 kapsamında, fuar ve online ziyaretçileri SGH10’u TECH kategorisinde DirectIndustry i-NOVO Award kazananı olarak seçmiştir.
- Ölçüm aralığı 0 … 1000 mm (39,37 inç)
- Mutlak ölçüm sistemi
- CANopen arayüzü, analog: akım ve gerilim
- Çalışma gerilimi 9 … 32 VDC
- 350 bar’a kadar basınca dayanıklı, 450 bar’a kadar basınç pikleri
- Herhangi bir ölçüm uzunluğuna teach-in sayesinde yüksek esneklik
- Yüksek EMC uyumluluğu
- Yüksek darbe ve titreşim dayanımı
- PURE.MOBILE teknolojisi ile
Electrical Data
| Analog interface | ||
| Feature | Technical data | Additional information |
| Linearity tolerance | ±0.25 % | 1000 mm measuring length, ±0.5% output value range ≤15 mV |
| ±0.5 % | 500 mm measurement length | |
| Settling time | <150 ms | |
| Type of connection | connector system | KV1H accessory |
| Operating voltage | 9 … 32 V DC | with output 0 … 5 V, 0.5 … 4.5 V, 0.25 … 4.75 V, 1.0 … 4.9 V, reverse polarity protected |
| 12 … 32 V DC | with output 0 … 10 V, reverse polarity protected | |
| 12 … 32 V DC | at output 0 … 20 mA, 4 … 20 mA, but UB > Uload +2.0 V, reverse polarity protected | |
| Current consumption | <32 mA | without load |
| Power input | <0.5 W | without load |
| Parameter storage | 10⁵ cycles | also applies to calibration operations |
| Digital inputs | 2 | limit inputs |
| Input signal level high | >8.4 V | |
| Input signal level low | <2.8 V | |
| Output voltage | 0 … 10 V | load current <1 mA |
| 0 … 5 V | load current <1 mA | |
| 0.5 … 4.5 V | load current <1 mA | |
| 0.25 … 4.75 V | load current <1 mA | |
| 1 … 4.9 V | load current <1 mA | |
| Output current | 0 … 20 mA | load ≤500 Ω |
| 4 … 20 mA | load ≤500 Ω | |
| CANopen interface | ||
| Feature | Technical data | Additional information |
| Operating voltage | 10 … 30 V DC | reverse polarity protection |
| Power input | <0.8 W | |
| Parameter storage | 10⁵ cycles | also applies to calibration operations |
| Interface | according to ISO 11898-1, not electrically isolated | CANopen, CiA 301, CiA 305, CiA 406 |
| Address | 1 … 127 | Node ID, via SDO or Layer Setting Service (LSS) |
| Baud rate | ≤1 Mbit/s | |
| Cycle time | 1.5 ms typical | |
| Type of connection | connector system | KV1H accessory |
| Settling time | <150 ms | |
| Linearity tolerance | ±0.25 % | 1000 mm measuring length, ±0.5% output value range ≤15 mV |
| ±0.5 % | 500 mm measurement length |
System Data
| Feature | Technical data | Additional information |
| Scanning | magnetic | |
| Resolution | 12 bit | analog output |
| Repeat accuracy | ±0.15 mm | |
| Measuring range | 500 mm | Measuring range flexibly usable between 0 … 500 mm |
| 1000 mm | Measuring range flexibly usable between 0 … 1000 mm | |
| Travel speed | ≤1 m/s | |
| Failure rate | 235.6 Year(s) | analog output, at 60° C (MTBF)according to SN 29500 |
| 253.3 Year(s) | CANopen, at 60° C (MTBF)according to SN 29500 | |
| Approval | E1 compliant | UN ECE R10 approval No: E1 10 R – 05 8507 |
Ambient Conditions
| Ambient temperature | -40 … 105 °C | electronics |
| -30 … 100 °C | mechanics, optionally to 105° C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 100% | condensation admissible in the mounted and plugged condition |
| EMC | EN 61326-3.1 | immunity requirement of industrial applications, emission limit class B |
| ISO 11452-1, -2, -3, -4, -5 | interference radiation ESA | |
| ISO 7637-1, -2 | transient pulses | |
| ISO 10605 | electrostatic discharge (ESD) | |
| Shock resistance | 1000 m/s², 11 ms | EN 60068-2-27 |
| Vibration resistance | 70 m/s², 10 … 2 kHz | EN 60068-2-64 |
| Operating pressure | <350 bar | Pn based on ISO19879 |
| Overload pressure | <450 bar | Pmax based on ISO 19879 |
| Test pressure | 650 bar | Pstatic based on ISO 19879 |
| Protection category | IP6K9K | ISO 20653, fitted with KV1H and suitable mating connector |
