Mechanical Data
| Feature | Technical data | Additional information |
| Band width | 10 mm | |
| Band thickness | 1.4 mm | without cover strip |
| Mounting type | adhesive connection | double-sided tape premounted |
| Material | rustproof stainless steel | Cover strip |

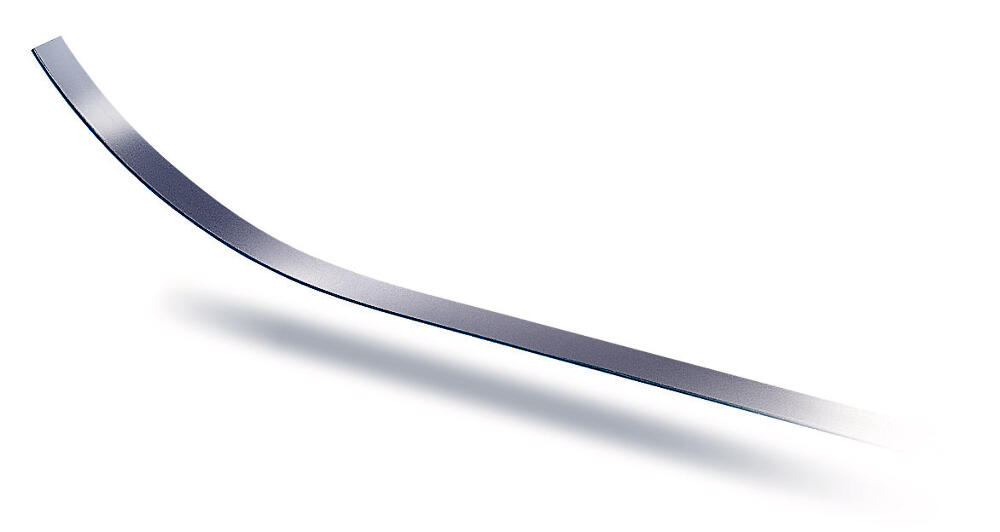

SIKO Manyetik bant MBA213
System Data
| Pole length | 2 mm | incremental |
| 4 mm | absolute | |
| Linearity deviation | ±30 µm | |
| Measuring range | ≤16000 mm |
Ambient Conditions
| Ambient temperature | -40 … 100 °C | |
| Storage temperature | -40 … 100 °C | |
| Expansion coefficient | (11 ±1) x 10-6/K | steel |
| Relative humidity | 100% | condensation admissible |
Technical Drawing
