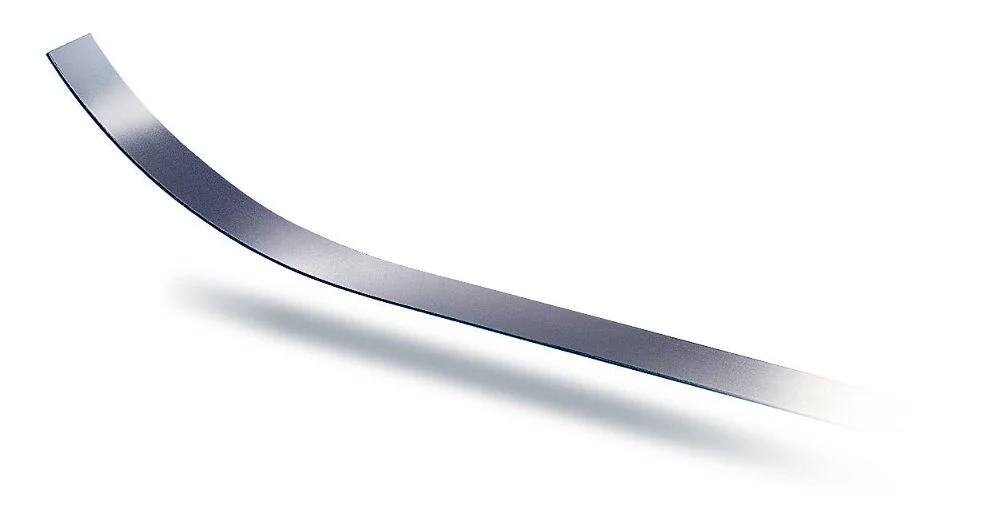

SIKO Manyetik bant MBA501

  • Kolay yapışkanlı montaj, kendi kendine montaj mümkündür
  • 75 m’ye kadar mevcut uzunluklar
Kategoriler: , , , Marka:

Mechanical Data

Feature Technical data Additional information
Band width 20 mm
Band thickness 1.4 mm without cover strip
Mounting type adhesive connection double-sided tape premounted
Accuracy class ±50 µm at TU = 20° C
Material rustproof stainless steel Cover strip

System Data

Feature Technical data
Measuring range ≤10240 mm

Ambient Conditions

Ambient temperature -20 … 70 °C
Storage temperature -40 … 70 °C
Expansion coefficient (11 ±1) x 10-6/K
Relative humidity 100% condensation admissible

Technical Drawing
