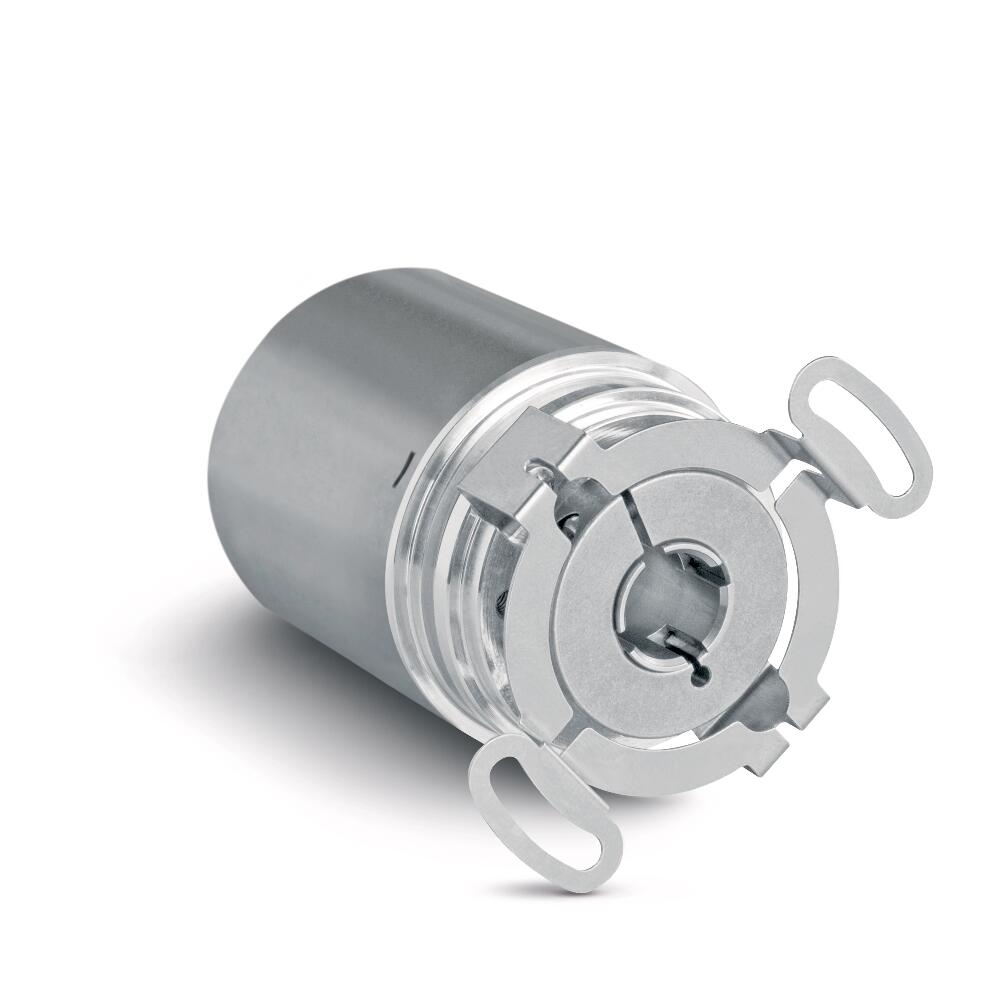

SIKO Mutlak Enkoder WH3650M

WH3650M döner enkoder, son derece kompakt tasarımıyla öne çıkan mutlak manyetik single-turn ve multi-turn döner enkoderdir. Özellikle sağlamdır ve titreşimlere karşı dayanıklıdır. IP67’ye kadar yüksek koruma derecesi ve -40 °C … +85 °C sıcaklık aralığı sayesinde zorlu endüstriyel uygulamalar için de uygundur. Sadece 36 mm çapındaki özellikle küçük tasarımı, döner enkoderi sınırlı montaj alanına sahip uygulamalarda kullanım için ideal hale getirir. IO-Link ve SSI arayüzleri sayesinde Endüstri 4.0’a hazırdır ve otomasyon ağlarında noktadan noktaya iletişim için ideal şekilde uygundur.

  • Aşınmasız mutlak manyetik enkoder
  • Dişlisiz ve pilsiz multi-turn
  • SSI, IO-Link arayüzü
  • Son derece kompakt ve çok sağlam tasarım
  • IP67 koruma sınıfı
  • Geniş sıcaklık aralığı -40 … 85 °C
  • Optimum fiyat-performans oranı
  • Endüstri 4.0’a hazır
Kategoriler: , , , Marka:

Mechanical Data

Feature Technical data Additional information
Flange aluminum
Housing zinc die-cast
Speed 6000 min-1 with protection class IP65, transient for ≤10 min
  3000 min-1 with protection class IP65, continuous operation
  4000 min-1 with protection class IP67, transient for ≤10 min
  2000 min-1 with protection class IP67, continuous operation
Starting torque <0.007 Nm at 20 °C with protection class IP65
  <0.01 Nm at 20 °C with protection class IP67
Shaft load rating 40 N radial
  20 N axial
Cable sheath PUR ø5.5 ±0.2 mm, with SSI
Cable bending radius 45 mm static, at SSI
  65 mm dynamic, at SSI
Mounting type stator coupling mounting type DS1
  spring element mounting type DS2
Weight ~0.2 kg
Shaft rustproof stainless steel

Electrical Data

IO-Link interface
Feature Technical data Additional information
Operating voltage 18 … 30 V DC reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption ≤40 mA without load
Parameter storage 104 cycles also applies to calibration operations
Status display two-color LED (red/green) device status
Interface IO-Link version 1.1 according to IEC 61131-9
Parameter SIKO standard profile IOL
  smart sensor profile IOLssp
Type of connection 1x M12-plug connector (A-coded) 4-pole, 1x pin, E12E connection type

SSI interface
Feature Technical data Additional information
Operating voltage 10 … 30 V DC reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption ≤40 mA without load
Parameter storage 104 cycles also applies to calibration operations
Digital inputs 2 calibration (SET), direction of rotation (DIR). Both inputs active at high (comparator).
Input signal level high ≥60 % from +UB <+UB
Input signal level low ≤30 % from +UB
SSI clock speed input 50 kHz … 2 MHz
Status display two-color LED (red/green) device status
Monoflop time ≤15 µs
Interface SSI line driver according to RS485
Cycle time 2 ms
Type of connection 1x M12-plug connector (A-coded) 8-pole, 1x pin, E12E connection type
  open cable end E1 connection type

System Data

Scanning magnetic
Resolution 12 bit single-turn, 4096 steps/rotation, only at SSI
  13 bit single-turn, 8192 steps/rotation, only at SSI
  14 bit 16384 steps/revolution
System accuracy ±1 °
Repeat accuracy ±0.2 °
Measuring range 1 rotation(s) singleturn
  4096 rotation(s) 12 bit, only at SSI
  65536 rotation(s) 16 bit, only at SSI
  262144 rotation(s) 18 bit, only at IO-Link
  16777216 rotation(s) 24 bit, only at SSI
Approval UL UL 61010-1, File No. E503367



Ambient Conditions

Ambient temperature -40 … 85 °C
Storage temperature -40 … 85 °C
Relative humidity 93% condensation inadmissible
EMC DIN EN 61326-1 immunity requirement of industry
  DIN EN 61000-4-2, -3, -6, -8 interference resistance / immission
  DIN EN 61000-4-4 burst
  DIN EN 61000-6-2 interference resistance / immission
  DIN EN 61000-6-4 emitted interference / emission
  DIN EN 55011 classes A and B radiation emission / radio interference suppression
Safety regulations UL 61010-1 indoor use, outdoor use possible, not intended for use involving direct exposure to UV light.
Protection category IP65 EN 60529 (protection type not yet reviewed by UL)
  IP67 EN 60529 (protection type not yet reviewed by UL)
Shock resistance 2500 m/s2, 6 ms EN 60068-2-27
Vibration resistance 300 m/s2, 10 … 2000 Hz EN 60068-2-6

Technical Drawing
