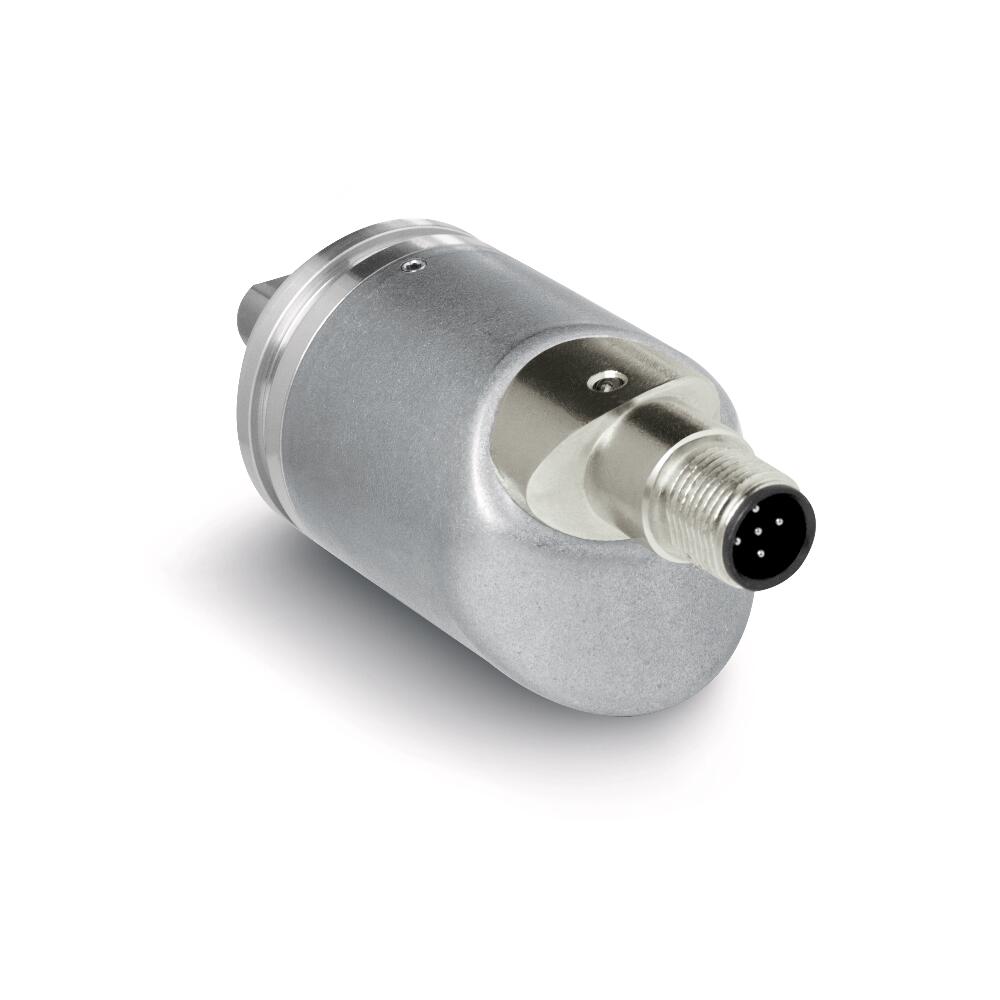

En zorlu gereksinimler altında bile güvenli ve hassas değerler sağlamak üzere özel olarak geliştirilen WV3600MO mutlak döner enkoder, offshore uygulamalarda kullanım için ideal şekilde uygundur. PURE.MOBILE modüler sensör sisteminin bir parçası olarak WV3600MO; sağlamlık, güvenlik ve güvenilirlik açısından yüksek kalite gereksinimlerini karşılar. Single-turn ve multi-turn versiyon olarak mevcut olan ve yalnızca 36 mm dış çapa sahip bu enkoder, sadece 65536 dönüşü algılamakla kalmaz, aynı zamanda son derece sınırlı montaj alanına sahip uygulamalara da monte edilebilir.
| Feature | Technical data | Additional information |
| Flange | rustproof stainless steel | |
| Housing | rustproof stainless steel | |
| Speed | ≤3000 min-1 | |
| Moment of inertia | 3.5 gcm² | |
| 4 gcm² with protection class IP6K9K | ||
| Starting torque | ≤2 Ncm at 20 °C | |
| Shaft load rating | ≤60 N | radial |
| ≤40 N | axial | |
| ≤200 N with protection class IP6K9K | radial | |
| ≤200 N with protection class IP6K9K | axial | |
| Shaft | rustproof stainless steel | |
| Operating voltage | 8 … 36 V DC | reverse polarity protection |
| Power input | ≤1 W at 36 V | without load |
| Parameter storage | 10⁵ cycles | also applies to calibration operations |
| Status display | 1x two-color LEDs (red/green) | device/CAN status |
| Power rating | ±36 V | CAN interface |
| Interface | according to ISO 11898-1, not electrically isolated | CANopen |
| according to ISO 11898-1, not electrically isolated | SAE J1939 | |
| Address | 1 … 127 | CANopen |
| 128 … 238 | SAE J1939 | |
| Type of connection | 1x M12-plug connector (A-coded) | 5-pin, 1x pin (E12E connection type) |
| open cable end | Stranded wire cross-section 0.5 mm² ( E1 connection type) | |
| Parameter | according to CiA 301, CiA 303 Part 3, CiA 305, CiA 406 | CANopen |
| according to SAE J1939-21, -71, -81, DA | SAE J1939 | |
| Starting time | <1000 ms | |
| Cycle time | <10 ms | |
| Baud rate | 20 kbit/s | CANopen |
| 50 kbit/s | CANopen | |
| 125 kbit/s | CANopen, SAE J1939 | |
| 250 kbit/s | CANopen, SAE J1939 | |
| 500 kbit/s | CANopen, SAE J1939 | |
| 800 kbit/s | CANopen | |
| 1 Mbit/s | CANopen |
| Feature | Technical data | Additional information |
| Scanning | magnetic | |
| Resolution | 14 bit | 16384 steps/revolution |
| Measuring range | 1 rotation(s) | singelturn |
| 4096 rotation(s) | 12 bit | |
| 65536 rotation(s) | 16 bit |
| Ambient temperature | -40 … 85 °C | |
| Storage temperature | -40 … 85 °C | |
| Relative humidity | 100% | condensation admissible |
| Protection category | IP67, IP6K9K | EN 60529, ISO 20653, according to assembly instructions and with suitable mating connector |
| IP6K9K | ISO 20653 | |
| Salt spray test | severity level 5 | EN 60068-2-52, salt spray test: 4 cycles, 28 days: installed according to assembly instructions and with suitable mating connector |
