SIKO Mutlak Enkoder AH3650M

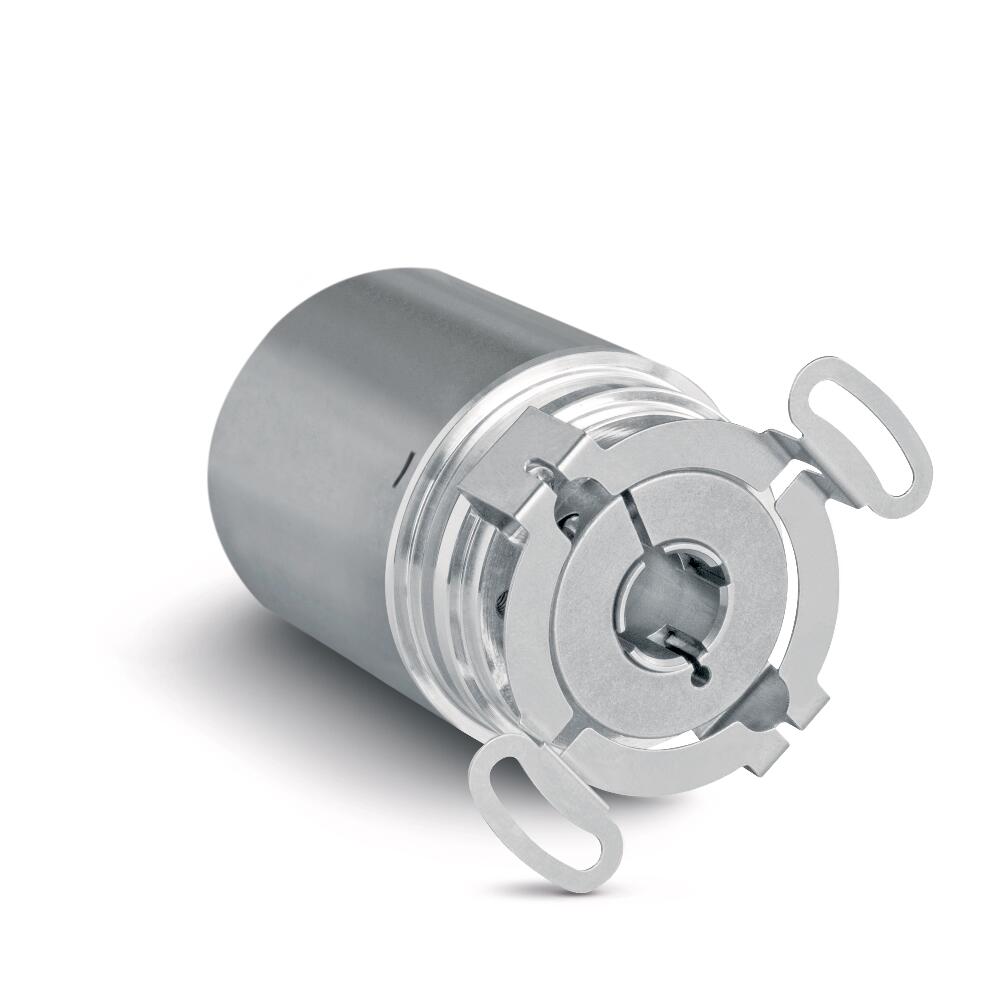

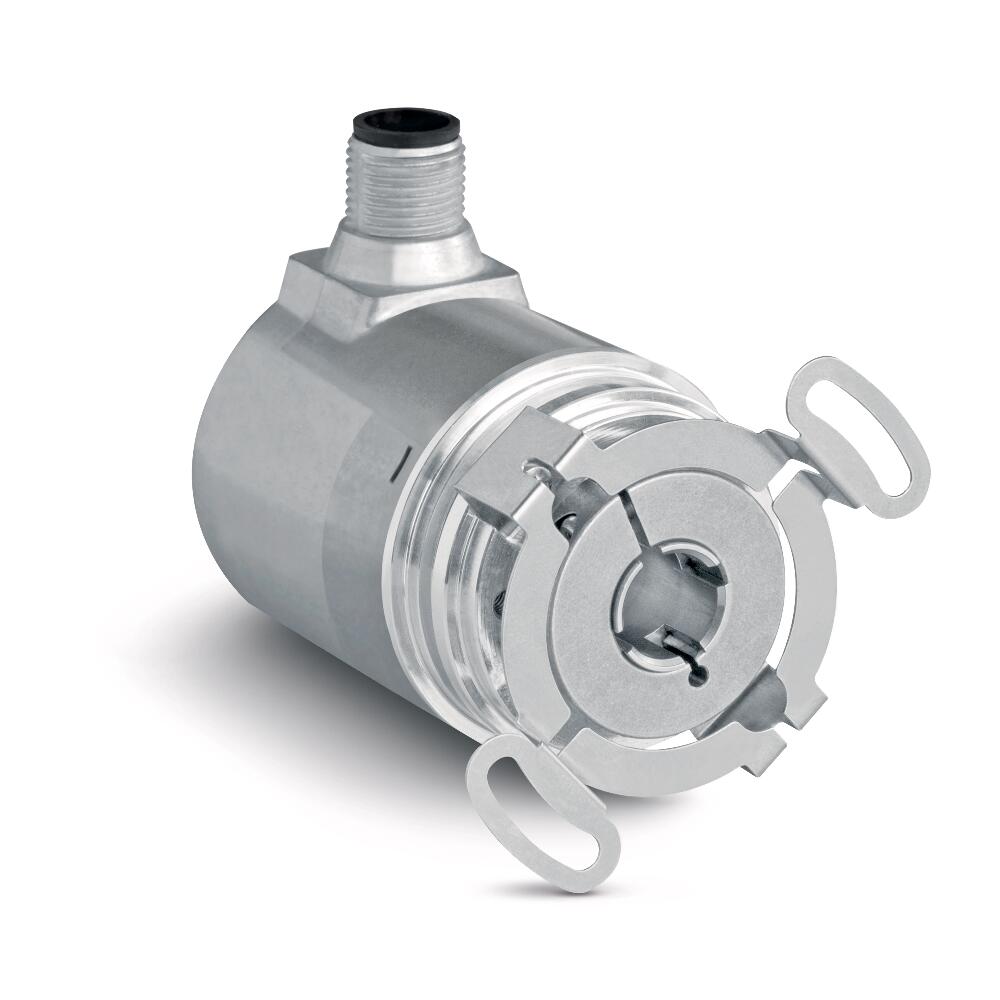

AH3650M döner enkoder, son derece kompakt tasarımıyla öne çıkan mutlak manyetik single-turn ve multi-turn döner enkoderdir. Özellikle sağlamdır ve titreşimlere karşı dayanıklıdır. IP67’ye kadar yüksek koruma derecesi ve -40 °C … +85 °C sıcaklık aralığı sayesinde zorlu endüstriyel uygulamalar için de uygundur. Sadece 36 mm çapındaki özellikle küçük tasarımı, döner enkoderi sınırlı montaj alanına sahip uygulamalarda kullanım için ideal hale getirir. Analog akım veya gerilim çıkışları, teach-in sayesinde herhangi bir ölçüm aralığına öğretilebilir.

  • Aşınmasız mutlak manyetik enkoder
  • Dişlisiz ve pilsiz multi-turn
  • Akım veya gerilim çıkış arayüzleri
  • Son derece kompakt ve çok sağlam tasarım
  • IP67 koruma sınıfı
  • Geniş sıcaklık aralığı -40 … 85 °C
  • Optimum fiyat-performans oranı
Kategoriler: , , , Marka:

Mechanical Data

Feature Technical data Additional information
Flange aluminum
Housing zinc die-cast
Speed 6000 min-1 with protection class IP65, transient for ≤10 min
  3000 min-1 with protection class IP65, continuous operation
  4000 min-1 with protection class IP67, transient for ≤10 min
  2000 min-1 with protection class IP67, continuous operation
Starting torque <0.007 Nm at 20 °C with protection class IP65
  <0.01 Nm at 20 °C with protection class IP67
Shaft load rating 40 N radial
  20 N axial
Cable sheath PVC ø6.2 ±0.2 mm
Cable bending radius 60 mm static
  130 mm dynamic
Mounting type stator coupling mounting type DS1
  spring element mounting type DS2
Weight ~0.2 kg
Shaft rustproof stainless steel



Electrical Data

Operating voltage 10 … 30 V DC at output 0 … 5 V, reverse polarity protected, power supply unit corresponds to Class 2 (UL 1310)
  15 … 30 V DC at output 0 … 10 V, reverse polarity protected, power supply unit corresponds to Class 2 (UL 1310)
  10 … 30 V DC at output 4 … 20 mA, but UB > Uload +2.0 V, reverse polarity protected, power supply unit corresponds to Class 2 (UL 1310)
Current consumption ≤30 mA without load
Parameter storage 104 cycles also applies to calibration operations
Inputs 2 limit inputs, high active
Input signal level high #AD? ≥1 s
Status display two-color LED (red/green) device status
Output voltage 0 … 5 V load ≥500 Ω
  0 … 10 V load ≥1000 Ω
Output current 4 … 20 mA at 24 V DC load ≤900 Ω
Temperature drift <100 ppm/K
Cycle time 1 ms
Starting time <1 s
Settling time <1 ms at output 0 … 5 V and 0 … 10 V, load = 1000 Ω, 25° C
  <1 ms at output 4 … 20 mA, load = 900 Ω, 25° C
Type of connection 1x M12-plug connector (A-coded) 5-pole, 1x pin, E12E connection type
  open cable end E1 connection type



System Data

Scanning magnetic
Resolution 11 bit at 0 … 5 V, analog output FS
  12 bit at 0 … 10 V, 4 … 20 mA, analog output FS
System accuracy ±1 °
Repeat accuracy ±0.2 °
Measuring range ≥22.5 °
  65536 rotation(s) 16 bit, factory setting 16 rotation(s)
Approval UL UL 61010-1, File No. E503367



Ambient Conditions

Ambient temperature -40 … 85 °C
Storage temperature -40 … 85 °C
Relative humidity 93% condensation inadmissible
EMC DIN EN 61326-1 immunity requirement of industry
  DIN EN 61000-4-2, -3, -6, -8 interference resistance / immission
  DIN EN 61000-4-4, -5 burst / surge
  DIN EN 61000-6-4 emitted interference / emission
  DIN EN 55011 class B radiation emission / radio interference suppression
Safety regulations UL 61010-1 indoor use, outdoor use possible, not intended for use involving direct exposure to UV light.
Protection category IP65 EN 60529 (protection type not yet reviewed by UL)
  IP67 EN 60529 (protection type not yet reviewed by UL)
Shock resistance 2500 m/s2, 6 ms EN 60068-2-27
Vibration resistance 300 m/s2, 10 … 2000 Hz EN 60068-2-6



Technical Drawing
