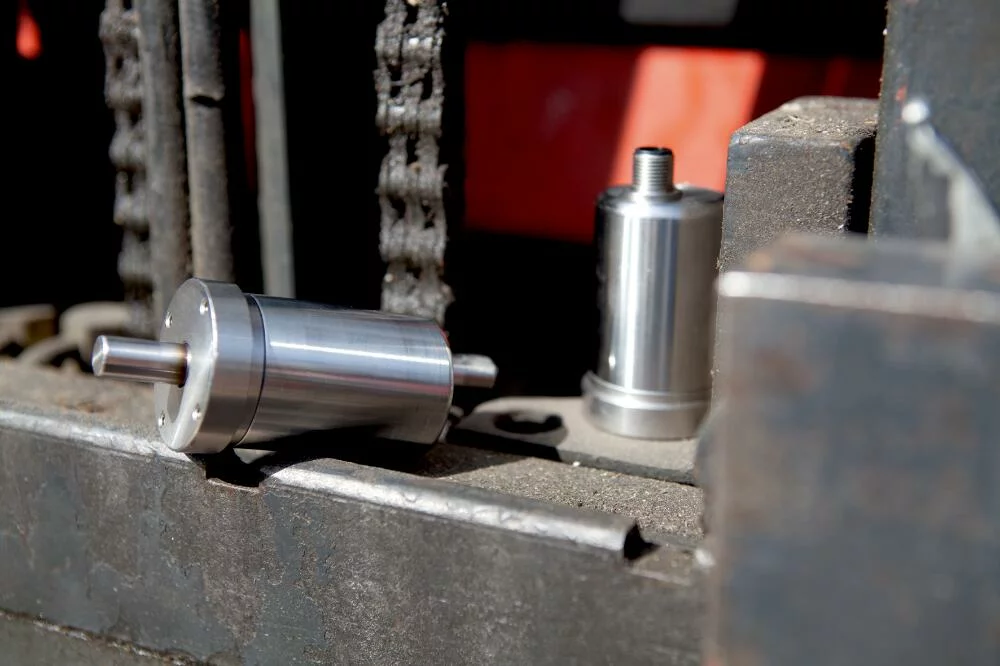

SIKO Mutlak Enkoder WV42HD

Heavy-duty paslanmaz çelik tasarıma sahip manyetik mutlak multi-turn döner enkoder; pilsiz, sağlam ve esnek. WV42HD, son derece sağlam gövdesi, yüksek radyal ve eksenel yükleri tolere edecek şekilde tasarlanmış rulmanları ve harici darbelere karşı yüksek dayanımı sayesinde heavy-duty alanındaki zorlu ölçüm görevleri için ideal şekilde uygundur.

  • Paslanmaz çelik heavy-duty tasarım
  • Kompakt tasarım (42 mm çap)
  • IP6K9K, IP68 koruma sınıfı
  • Tuz püskürtme ve asitlere dayanıklı
  • CANopen arayüzü, SSI, analog
  • Pilsiz multi-turn
  • 270 N’ye kadar yüksek mil yük kapasitesi
  • 16 bit multi-turn (65536 devir)
  • 13 bit single-turn (8192 devir)
Kategoriler: , , , Marka:

Mechanical Data

Feature Technical data Additional information
Flange stainless steel 14.404
Housing stainless steel 14.404
Speed ≤12000 min-1
Starting torque ≤4 Ncm at 25 °C
Shaft load rating ≤270 N axial
  ≤270 N radial
Weight ~0.35 kg
Shaft stainless steel 14.112

Electrical Data

Transducer, power output
Feature Technical data Additional information
Operating voltage 8 … 32 V DC 4 … 20 mA
Current consumption 20 mA @ 24 V (idling) typical 4 … 20 mA
Linearity 0.15 % 4 … 20 mA
Load <500 Ω Rload 4 … 20 mA, load against ground GND
Accuracy ±0.09 ° singleturn, 4 … 20 mA
Starting time <500 ms 4 … 20 mA
Settling time 32 ms 4 … 20 mA

Transducer, voltage output
Feature Technical data Additional information
Operating voltage 8 … 32 V DC 0 … 10 V
Current consumption 15 mA typical 0 … 10 V
Linearity 0.15 % 0 … 10 V
Load >5 kΩ Rload 0 … 10 V, load against ground GND
Accuracy ±0.09 ° singleturn, 0 … 10 V
Starting time <500 ms 0 … 10 V
Settling time 32 ms 0 … 10 V

System Data

Resolution 13 bit (analog output) over the programmed measuring range
  13 bit (singleturn) current/voltage output
  12 bit (singleturn) CANopen, SSI
Measuring range ≥11.5 °
  ≤1 rotation(s) singleturn
  ≤65536 rotation(s) multiturn
  16 rotation(s) factory setting (multiturn)



Ambient Conditions

Ambient temperature -40 … 85 °C
Storage temperature -40 … 85 °C
Relative humidity 98% condensation inadmissible
EMC EN 61000-6-2 interference resistance / immission
  EN 61000-6-4 emitted interference / emission
Protection category IP68 EN 60529
  IP6K9K ISO 20653
Shock resistance ≤3000 m/s², 6 ms EN 60068-2-27
Vibration resistance ≤300 m/s², 10 … 1 kHz EN 60068-2-6

Technical Drawing
